FMS® MOTORISED TRACK SYSTEM

Smooth and noiseless belt driven motorised curtain track

PRODUCT INFORMATION

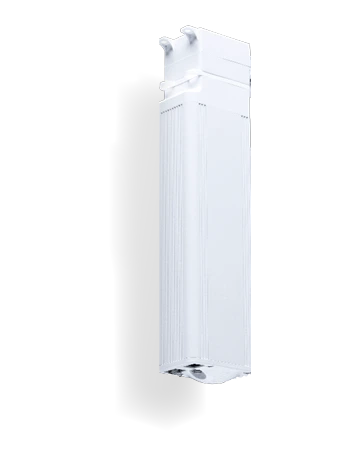

  • All Shuttle® motors are compatible

  • The FMS® is available in white, matt white, black, matt black and grey

  • Assembly components are in similar colour available as track colours

  • Clickable off-set carriers for a straight heading of the curtain; rolling carriers and FES® Easyflex carriers also available

  • Especially designed for use in combination with Forest Wave System

  • Motor can be mounted on the left or the right of the track

  • One-way draw or center (split) draw curtains possible

  • All KS® brackets compatible

  • Ceiling brackets and wall brackets available

  • FMS® track can be made in lengths of up to 14 meter (single stack up to 10 meters)

  • FMS® track can be curved/bent

  • Also available as FMS Plus® & FMS Plus® with recess profile.

  • Warranty: 10 years

FMS, FMS DUAL & FMS PLUS
DOWNLOAD

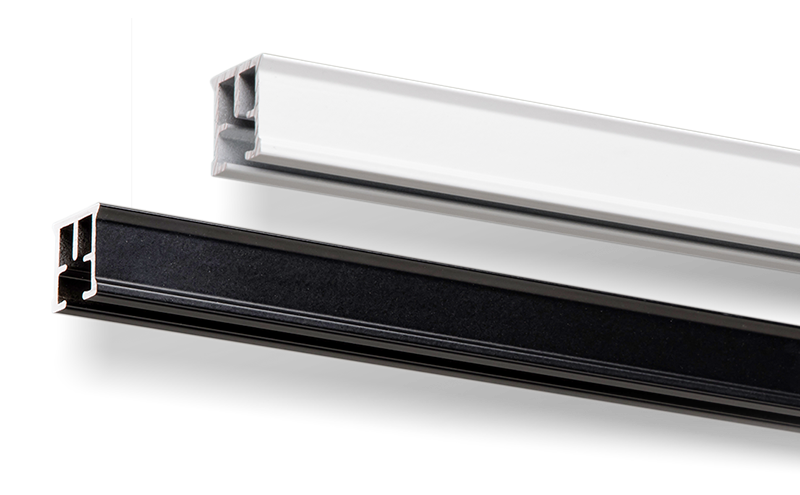

SPECIFICATIONS TRACK

  • Weight: 303 gr/mtr (3,25 ounce/ft.)

  • Aluminium Extrusion

  • Size: 20 x 20 mm (0.79 x 0.79”)

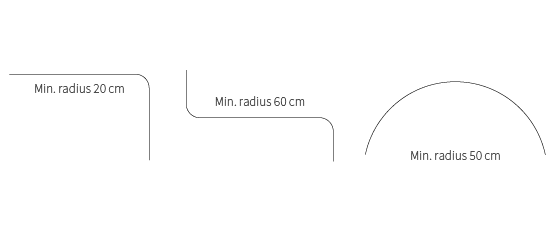

BENDING/CURVING

The motor can be used in a track with one or two bends of 90 degrees. The track can be bent and reversed bent with a radius of 20 cm (8”). Continuous curving can be done with the electric powered bender.


FOR USE IN

Hotels - offices - residences - boats - campers - planes or any location where an efficient cord traversing system is required.

TANDEM APPLICATIONS

More information is available on request.


CONTROL OPTIONS


Diamond Sense Remote Control

Wireless, with remote control and/ or switch, 15 or 2 channels.


App / Domotics control

Wired or wireless Domotics or App control is possible.


Switch control

For wiring and connection instructions, consult User/Installation Manual.


Building automation

The FMS can be connected to any Building Automation system, by relay control. Optionally available is a Bi-directional Bus-controller, which enables data feedback communication with for instance AMX/Crestron Automation systems.


Hotel control

The FMS can be connected to any Hotel Automation system, by relay control.

Works with


The Forest Motorised curtainn track system can easily be applied in current Building and Home Automation systems.
