FMS® MOTORISED TRACK SYSTEM
|
||
 |
||
|
Smooth and noiseless belt driven motorised curtain track |
Compact and noiseless belt driven motorised curtain track system
All Shuttle® motors can be used on the FMS® System
The FMS® track is available in 3 versions: FMS®, FMS Plus® & FMS Plus® with recess profile.
The FMS® is available in white, matt white, black, matt black and grey
The FMS Plus® and FMS Plus® with recess profile are available in black and white
Assembly components are in similar colour available as track colours
Clickable off-set carriers for a straight heading of the curtain; rolling carriers and FES® Easyflex carriers also available
Especially designed for use in combination with Forest Wave System
Motor can be mounted on the left or the right of the track
One-way draw or center (split) draw curtains possible
All KS® brackets compatible
Ceiling brackets and wall brackets available
FMS® track can be made in lengths of up to 14 meter (single stack up to 10 meters)
FMS® track can be curved/bent
Recess fixation possible by recess profile in combination with FMS Plus® track.
Warranty: 10 years
Weight: 303 gr/mtr (3,25 ounce/ft.)
Aluminium Extrusion
Size: 20 x 20 mm (0.79 x 0.79”)

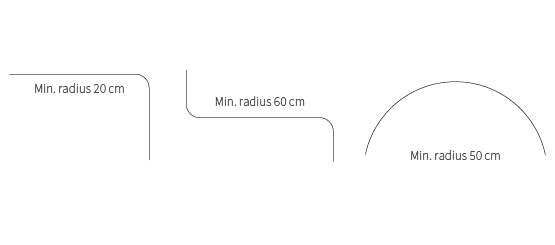

The motor can be used in a track with one or two bends of 90 degrees. The track can be bent and reversed bent with a radius of 20 cm (8”). Continuous curving can be done with the electric powered bender.
Hotels - offices - residences - boats - campers - planes or any location where an efficient cord traversing system is required.
More information is available on request.
| FMS® PLUS | ||
| ||
| This Forest motorised curtain track is ideal for a clean, concealed curtain track installation. |
Instead of a regular ceiling fix or wall fix installation of the FMS track system, Forest Group also offers a solution for a recess fixed motorised curtain track. The FMS Plus® system is ideal for a clean, concealed curtain track installation. The recess profile can be fitted during the construction of the ceiling, the FMS Plus® motorised track can then be fitted once all the finishing works have been completed. The motor can be placed in a regular position, or inverted into the ceiling. The system can be fitted with regular FMS carriers, rotating carriers or the Forest Wave System.
Weight 500 gr/mtr
Sizes 19,6x30mm
Aluminium Extrusion
Weight 555 gr/mtr
Sizes 26x32.20mm
Aluminium Extrusion

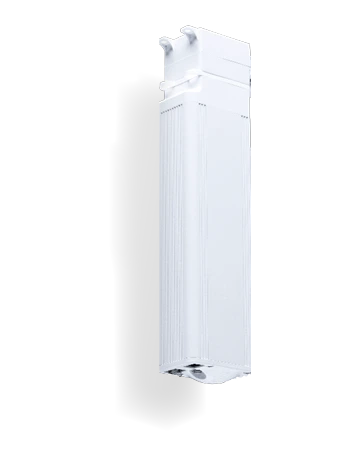

All types of Forest Shuttle motors can be used on the FMS Plus® Track system.
A unique feature about this system is that it can be curved and bent, at a radius of just 20 cm. To facilitate this, special 90 degree corner pieces of the recess profile itself are available. Continuous curves up to a minimum radius of 60 cm are also possible.
We also have a manual recess curtain track available, the KS Recess. More information on the FMS Plus® system is available in the Forest Shuttle® brochure.
Diamond Sense Remote Control
Wireless, with remote control and/ or switch, 15 or 2 channels.
App / Domotics control
Wired or wireless Domotics or App control is possible.
Switch control
For wiring and connection instructions, consult User/Installation Manual.
Building automation
The FMS can be connected to any Building Automation system, by relay control. Optionally available is a Bi-directional Bus-controller, which enables data feedback communication with for instance AMX/Crestron Automation systems.
Hotel control
The FMS can be connected to any Hotel Automation system, by relay control.
The Forest Motorised curtainn track system can easily be applied in current Building and Home Automation systems.
