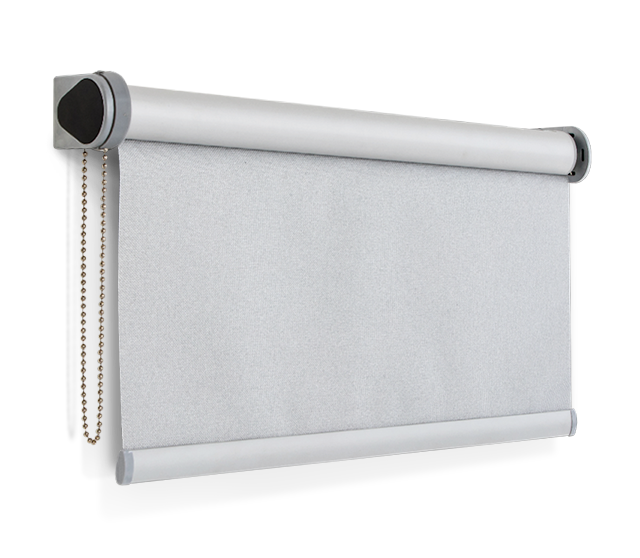

FOREST ATLANTIS®
SLIM LINE

Chain & Motorised
roller blind system


PRODUCT INFORMATION
  • Tube available in 35mm and 40mm

  • Chain, crank operated or motorised system

  • Easy installation with universal adjustable brackets

  • Forest tubular motors and controls can be used

  • Maximum total weight 3.5 kg

  • Three options of tubular motors

  • Silent moving motorised roller blind system. Noise level < 44 dB(A)

  • Domotics ready

  • Tubular motor also available with internal Multi receiver and electronic limit setting

  • Multiple blinds on a single motor through intermediate brackets

  • Cover cassette and side guides available

  • Battery tubular motor also available

  • Three fitting options: recess, ceiling, wall

  • 35mm width up to 200cm

  • 40mm width up to 250cm

  • 35mm height fabrics (0.3mm) up to 450cm

  • 40mm height fabrics (.03mm) up to 390cm

  • Chain control options: 1:2 / 1:1 / 1-2.5

Roller Blind Series
DOWNLOAD

FOR USE IN

Hotels - offices - residences - boats or anywhere a roller blind system is required to create full black-out or decorative use.

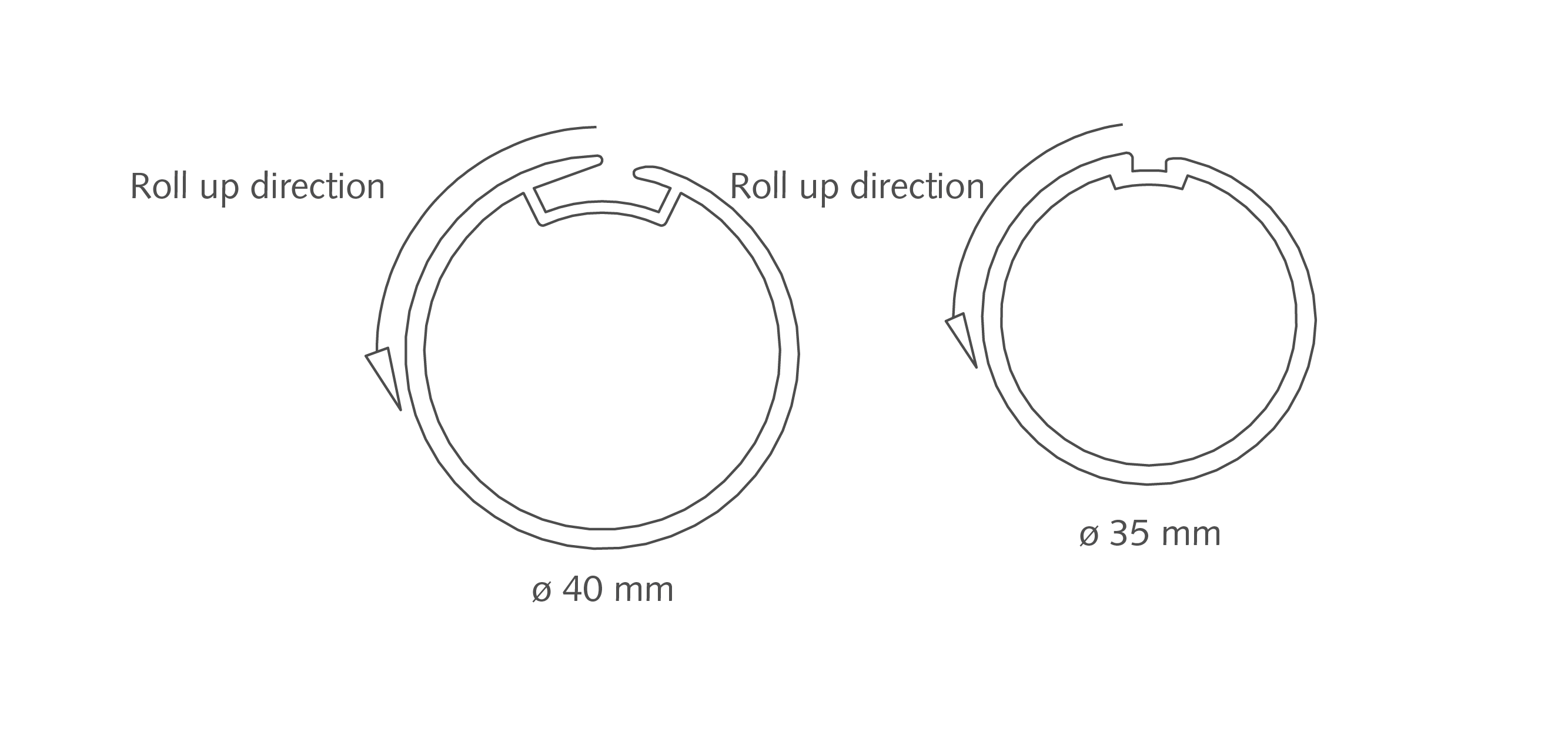

SPECIFICATIONS TUBE
  • Sizes : ø 35mm and 40mm diameter
  • Weight : 556 grams/mtr and 685 grams/mtr
  • Aluminium extrusion
